MONITORS

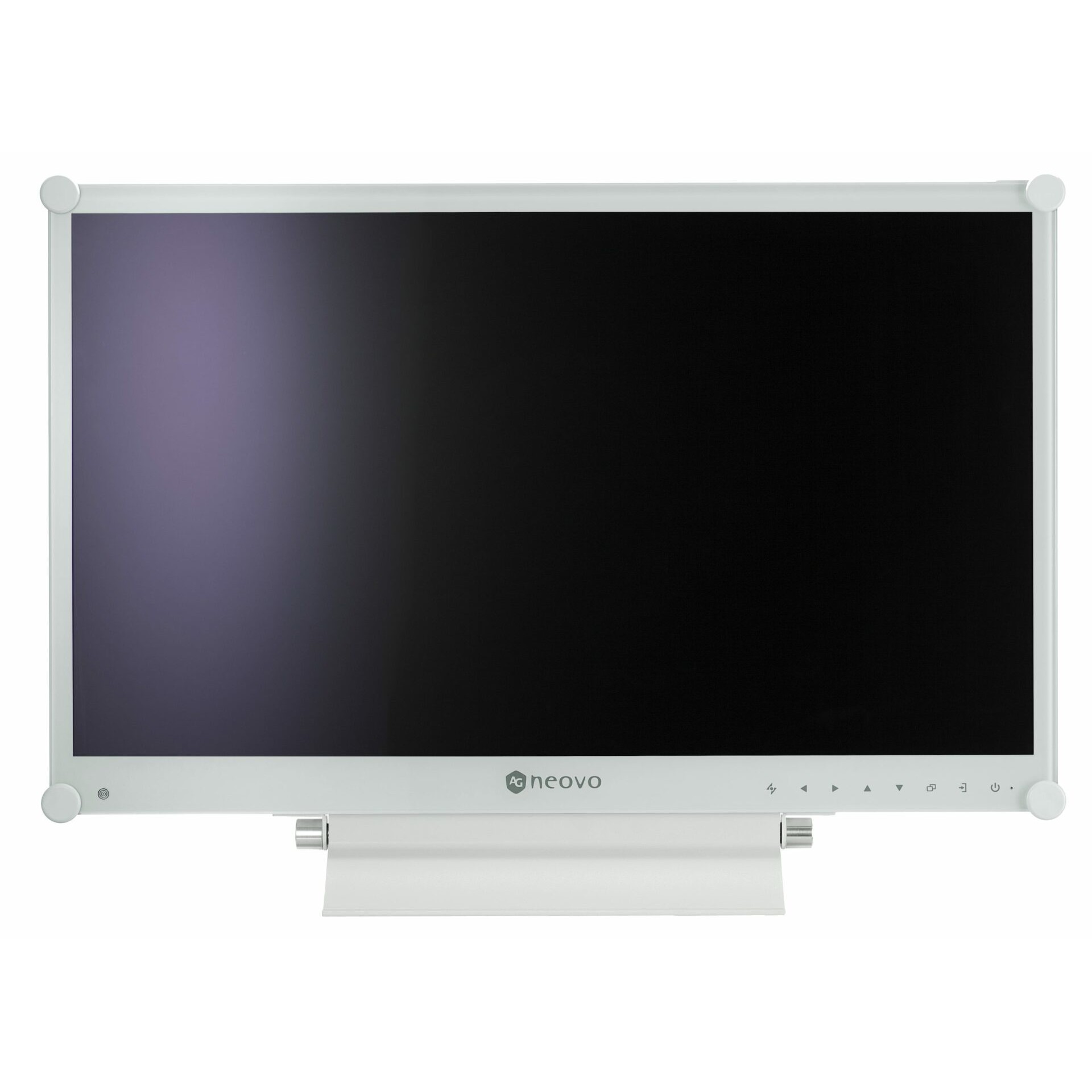

The MX-24 is a 24-inch DICOM monitor featuring Full HD 1080p resolution. low-voltage medical power supply with IEC / EN 60601-1 certified. Compatible with DICOM Part 14 standard. it ensures accurate and excellent medical image quality. colour reproduction. and image contrast. Equipped with NeoV™ Optical Hard Glass. the MX-24 withstands alcohol and other commonly used cleaning solutions. allowing medical professionals to sanitize it easily.

EASY CLEAN AND ROBUST PROTECTION
The special design of NeoV Optical Hard Glass and white metal casing prevent dust and waterproof for easy clean and robust protection.

DICOM PART 14 CALIBRATION
DICOM Part 14 calibration corrects gamma and luminance to achieve the smooth grayscale for the accurate and consistent appearance of clinical data and other medical images.

MEDICAL-GRADE POWER SUPPLY WITH EN/IEC60601-1 CERTIFIED
Low-voltage medical power supply with IEC / EN 60601-1 certified to ensure safety. performance. and reliable operation in any professional medical environment.

PIP/PBP SUPPORT
This 24-Inch DICOM monitor enhances work efficiency with PiP/PbP support for multitasking.

Display
Display diagonal: 60.5 cm (23.8")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: VA
Display brightness (typical): 250 cd/m²
Response time: 5 ms
Screen shape: Flat
Supported graphics resolutions: 1920 x 1080 (HD 1080)
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 20000000:1
Viewing angle. horizontal: 178°
Viewing angle. vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.274 x 0.274 mm
Digital horizontal frequency: 24 - 83 kHz
Digital vertical frequency: 50 - 75 Hz
Surface hardness: 9H
Colour gamut standard: NTSC
NTSC coverage (typical): 72%
Multimedia
Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)
Design
Market positioning: Medical
Product colour: White
Ports & interfaces
VGA (D-Sub) ports quantity: 1
Feature: DVI port
DVI-D ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
Feature: Audio input
Ergonomics
Feature: VESA mounting
Panel mounting interface: 75 x 75.100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Tilt adjustment
Tilt angle range: 3 - 21°
Power
Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 18 kWh
Power consumption (typical): 18 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Power supply type: External
Energy efficiency scale: A to G
European Product Registry for Energy Labelling (EPREL) code: 670707
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
Width (with stand): 562.4 mm
Depth (with stand): 196 mm
Height (with stand): 392.8 mm
Weight (with stand): 7.8 kg
Width (without stand): 562.4 mm
Depth (without stand): 56.2 mm
Height (without stand): 352.6 mm
Weight (without stand): 7 kg
Packaging data
Package width: 672 mm
Package depth: 249 mm
Package height: 517 mm
Package weight: 10.9 kg
Packaging content
Cables included: AC. Audio (3.5mm). VGA
Feature: Power adapter included
Feature: Quick start guide
Other features
Compliance certificates: RoHS. Low Voltage Directive (LVD). UKCA. WEEE. CE. REACH
Logistics data
Harmonized System (HS) code: 85285210
