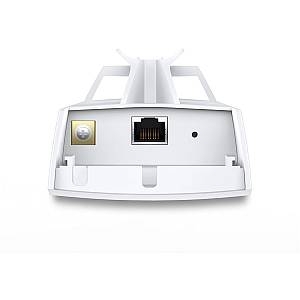

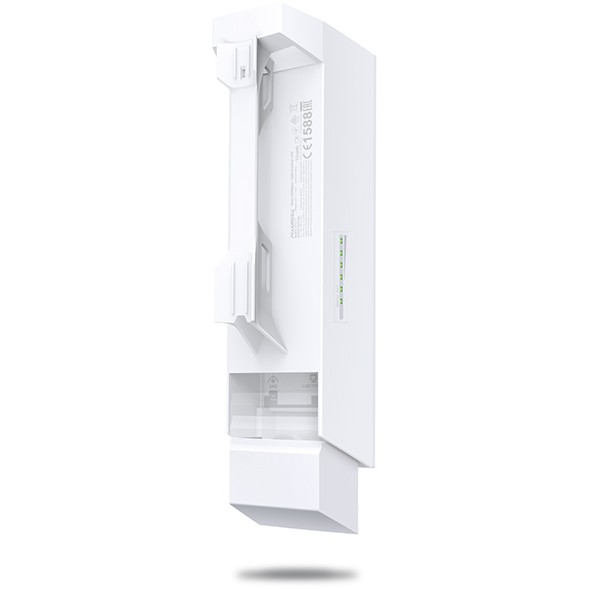

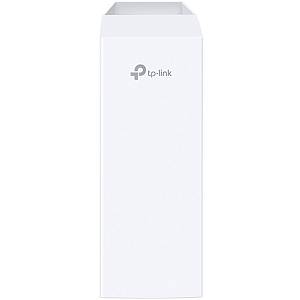

TP-Link CPE510 Outdoor - 5 GHz 300 Mbps 13 dBi Outdoor CPE
Product code: 11459622 // MPN: CPE510 // EAN: 6935364070922
Similar products
What this product does
TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE. the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application. it is ideal for point-to-point. point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance. coupled with user-friendly design. makes CPE510 an ideal choice for both business and home users.
Enterprise Hardware Design
With Qualcomm Atheros enterprise level chipsets. high gain antennas and high quality material. specially designed enclosure. and PoE power supply. CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate. with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna and dedicated metal reflection ensures higher gain and lower noise interference.
High Power & High Sensitivity
In advanced. high power Tx (up to 27dBm/500mw) and high sensitivity Rx (up to -95dBm) radio front-end design breaks down the barriers of traditional Wi-Fi transmission range. making CPE510 an ideal product for outdoor wireless networking applications.
Professional Outdoor Design
CPE510 is designed to work in harsh environments. even in some of the world’s most hostile climate conditions.
Weatherproof Design
With its outdoor weatherproof enclosure and industrial-level hardware design. CPE510 can continue operating in various weather conditions. such as sunshine. rainfall. wind. snow or extremely low/high temperature environment(-30°C~70°C).
Double Protection against ESD Attacks
Besides its grounding terminal. CPE510 offers another way to eliminate ESD attacks via the PoE adapter and Ethernet cable with grounding wire. The CPE510’s additional security measures provide up to 15KV ESD and 6000V lightning protection for more reliable operation.
TP-LINK MAXtream TDMA Technology
As network scale increases. wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop. resulting in a serious impact on end-user experience. to mitigate these effects. the CPE510 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE510 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery. status monitoring. firmware upgrading. and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to apply more specific configurations
Features
Feature: 5 GHz
Maximum data transfer rate: 300 Mbit/s
Maximum data transfer rate (5 GHz): 300 Mbit/s
Ethernet LAN data rates: 10.100 Mbit/s
Throughput data rate: 300 Mbit/s
Frequency band: 5.15 - 5.85 GHz
Bandwidth: 5 GHz
Networking standards: IEEE 802.11a. IEEE 802.11n
Cabling technology: 10/100Base-T(X)
Feature: Automatic channel selection
Feature: Automatic channel scanning
Feature: VLAN support
Virtual LAN features: Tagged VLAN
Feature: Wireless isolation
Maximum outdoor range: 15000 m
Security
Security algorithms: AES. TKIP. WPA. WPA-PSK. WPA2. WPA2-PSK
Feature: MAC address filtering
Feature: IP address filtering
Service Set Identifier (SSID) features: SSID broadcast. SSID broadcast on/off
Feature: IGMP snooping
Feature: Auto Wireless Distribution System (WDS)
Protocols
Feature: Universal Plug and Play (UPnP)
Management protocols: TDMA
Management features
Feature: Web-based management
Feature: Syslog
Management platform: Pharos Control
Feature: Firmware upgradeable
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
WAN connection: Ethernet (RJ-45)
Feature: DC-in jack
Power
Feature: Power over Ethernet (PoE)
DC voltage range: 16 - 27 V
Power consumption (typical): 13 W
Design
Placement: Pole. Wall
Product colour: White
Housing material: Plastic
International Protection (IP) code: IP5X
Feature: Reset button
Feature: LED indicators
Antenna
Antenna type: Internal
Antenna direction type: Omni-directional
Antenna features: Integrated antenna
Antennas quantity: 1
Antenna gain level (max): 13 dBi
Performance
Feature: Built-in processor
Processor model: Qualcomm Atheros
Processor frequency: 560 MHz
Processor architecture: MIPS 74Kc
Flash memory: 8 MB
Internal memory: 64 MB
Compatible operating systems: Microsoft Windows 98SE. NT. 2000. XP. Vista™ or Windows 8. Windows 7. MAC OS. NetWare. UNIX or Linux.
Certificates
Certification: - FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark- RoHS
Weight & dimensions
Width: 224.4 mm
Depth: 79 mm
Height: 60.3 mm
Packaging data
Package width: 132 mm
Package depth: 270 mm
Package height: 106 mm
Package weight: 720 g
Packaging content
Quantity per pack: 1 pc(s)
Feature: PoE adapter included
Cables included: AC
Feature: Mounting kit
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -30 - 70 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 95%
TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE. the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application. it is ideal for point-to-point. point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance. coupled with user-friendly design. makes CPE510 an ideal choice for both business and home users.
Enterprise Hardware Design
With Qualcomm Atheros enterprise level chipsets. high gain antennas and high quality material. specially designed enclosure. and PoE power supply. CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate. with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna and dedicated metal reflection ensures higher gain and lower noise interference.
High Power & High Sensitivity
In advanced. high power Tx (up to 27dBm/500mw) and high sensitivity Rx (up to -95dBm) radio front-end design breaks down the barriers of traditional Wi-Fi transmission range. making CPE510 an ideal product for outdoor wireless networking applications.
Professional Outdoor Design
CPE510 is designed to work in harsh environments. even in some of the world’s most hostile climate conditions.
Weatherproof Design
With its outdoor weatherproof enclosure and industrial-level hardware design. CPE510 can continue operating in various weather conditions. such as sunshine. rainfall. wind. snow or extremely low/high temperature environment(-30°C~70°C).
Double Protection against ESD Attacks
Besides its grounding terminal. CPE510 offers another way to eliminate ESD attacks via the PoE adapter and Ethernet cable with grounding wire. The CPE510’s additional security measures provide up to 15KV ESD and 6000V lightning protection for more reliable operation.
TP-LINK MAXtream TDMA Technology
As network scale increases. wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop. resulting in a serious impact on end-user experience. to mitigate these effects. the CPE510 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE510 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery. status monitoring. firmware upgrading. and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to apply more specific configurations
Features
Feature: 5 GHz
Maximum data transfer rate: 300 Mbit/s
Maximum data transfer rate (5 GHz): 300 Mbit/s
Ethernet LAN data rates: 10.100 Mbit/s
Throughput data rate: 300 Mbit/s
Frequency band: 5.15 - 5.85 GHz
Bandwidth: 5 GHz
Networking standards: IEEE 802.11a. IEEE 802.11n
Cabling technology: 10/100Base-T(X)
Feature: Automatic channel selection
Feature: Automatic channel scanning
Feature: VLAN support
Virtual LAN features: Tagged VLAN
Feature: Wireless isolation
Maximum outdoor range: 15000 m
Security
Security algorithms: AES. TKIP. WPA. WPA-PSK. WPA2. WPA2-PSK
Feature: MAC address filtering
Feature: IP address filtering
Service Set Identifier (SSID) features: SSID broadcast. SSID broadcast on/off
Feature: IGMP snooping
Feature: Auto Wireless Distribution System (WDS)
Protocols
Feature: Universal Plug and Play (UPnP)
Management protocols: TDMA
Management features
Feature: Web-based management
Feature: Syslog
Management platform: Pharos Control
Feature: Firmware upgradeable
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
WAN connection: Ethernet (RJ-45)
Feature: DC-in jack
Power
Feature: Power over Ethernet (PoE)
DC voltage range: 16 - 27 V
Power consumption (typical): 13 W
Design
Placement: Pole. Wall
Product colour: White
Housing material: Plastic
International Protection (IP) code: IP5X
Feature: Reset button
Feature: LED indicators
Antenna
Antenna type: Internal
Antenna direction type: Omni-directional
Antenna features: Integrated antenna
Antennas quantity: 1
Antenna gain level (max): 13 dBi
Performance
Feature: Built-in processor
Processor model: Qualcomm Atheros
Processor frequency: 560 MHz
Processor architecture: MIPS 74Kc
Flash memory: 8 MB
Internal memory: 64 MB
Compatible operating systems: Microsoft Windows 98SE. NT. 2000. XP. Vista™ or Windows 8. Windows 7. MAC OS. NetWare. UNIX or Linux.
Certificates
Certification: - FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark- RoHS
Weight & dimensions
Width: 224.4 mm
Depth: 79 mm
Height: 60.3 mm
Packaging data
Package width: 132 mm
Package depth: 270 mm
Package height: 106 mm
Package weight: 720 g
Packaging content
Quantity per pack: 1 pc(s)
Feature: PoE adapter included
Cables included: AC
Feature: Mounting kit
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -30 - 70 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 95%
