ACCESS POINTS

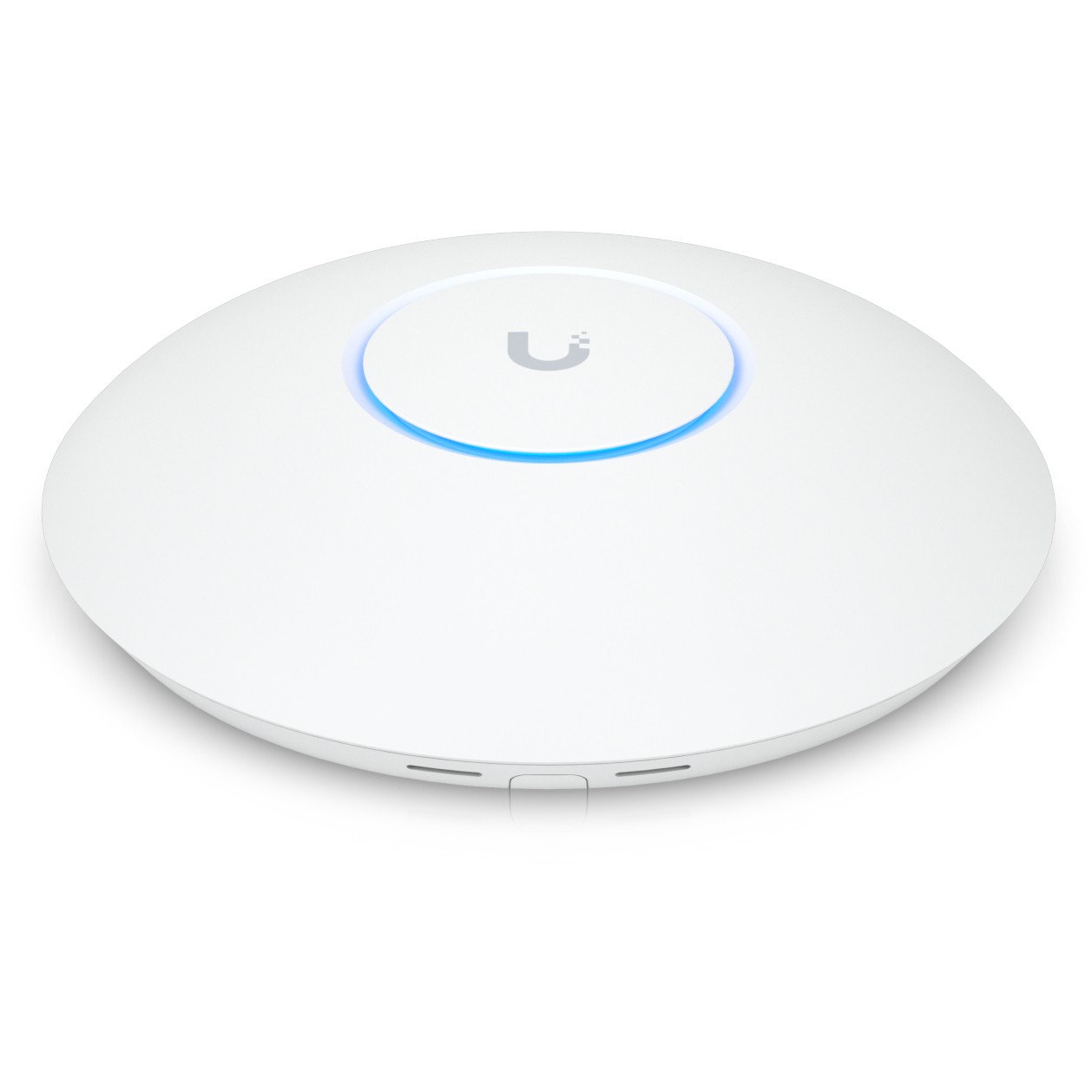

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding. large-scale environments.

Features
Feature: 2.4 GHz
Feature: 5 GHz
Feature: 6 GHz
Maximum data transfer rate: 5800 Mbit/s
Maximum data transfer rate (2.4 GHz): 688 Mbit/s
Maximum data transfer rate (5 GHz): 4300 Mbit/s
Maximum data transfer rate (6 GHz): 5800 Mbit/s
Ethernet LAN data rates: 1000.2500 Mbit/s
Throughput data rate: 5765 Mbit/s
Frequency band: 2.4 - 6 GHz
Coverage area: 140 m²
Number of users: 300 user(s)
Feature: MIMO
MIMO type: Multi User MIMO
Fit AP mode features: Hotspot 2.0
Feature: Fast roaming
Feature: VLAN support
Feature: Rate limiting
Feature: Band steering
Feature: Quality of Service (QoS) support
Maximum Tx power (2.4 GHz): 22 dBmW
Maximum Tx power (5 GHz): 26 dBmW
Maximum Tx power (6 GHz): 23 dBmW
Security
Security algorithms: PPSK. WPA. WPA-Enterprise. WPA-PSK. WPA2. WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
WAN connection: Ethernet (RJ-45)
Power
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
DC voltage range: 44 - 57 V
Power consumption (max): 21 W
Design
Placement: Ceiling. Wall
Product colour: White
Housing material: Metal. Polycarbonate (PC)
Feature: Reset button
Feature: LED indicators
Antenna
Antenna type: Internal
Antenna gain level (max): 6 dBi
Certificates
Compliance certificates: CE. Federal Communications Commission (FCC). Industry Canada (IC)
Weight & dimensions
Width: 206 mm
Depth: 206 mm
Height: 46 mm
Weight: 680 g
Packaging content
Quantity per pack: 1 pc(s)
Feature: Mounting kit
Operational conditions
Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -30 - 60 °C
Sustainability
Feature: Sustainability compliance
