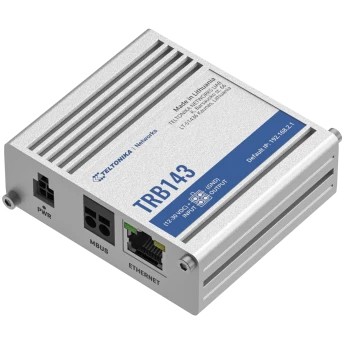

TRB143 - M-BUS CELLULAR GATEWAY
The TRB143 industrial gateway was designed with an integrated M-Bus interface specifically for telemetry and utility-monitoring applications. It features cellular and wired connectivity. one Gigabit Ethernet port. and a pair of digital Inputs/Outputs. making it applicable to a variety of environment-monitoring scenarios.

- M-BUS INTERFACE
Supporting up to 250 client devices
- CONNECTIVITY
4G/LTE (Cat 4). 3G. 2G
- DURABILITY
Rugged aluminum housing
- COMPACT
Simple integration

- Hardware version
Europe. The Middle East. Africa. Thailand

Design
Product colour: Steel
Enclosure material: Aluminium
International Protection (IP) code: IP30
Enclosure International Protection (IP) code: IP30
Features
Antenna type: External
Antenna connector type: SMA
Antennas quantity: 1
Feature: Short Message Service (SMS)
Performance
Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor model: Cortex-A7
Processor frequency: 1300 MHz
Internal memory: 256 MB
Internal memory type: DDR3
Flash memory: 512 MB
Protocols
Data link protocols: HTTP(S). MQTT. Azure MQTT. Kinesis
Feature: DMZ support
Network
Ethernet LAN data rates: 10.100.1000 Mbit/s
Networking standards: IEEE 802.3. IEEE 802.3az. IEEE 802.3u
4G LTE category: 4
Mobile network generation: 4G
Data network: 2G. 3G. 4G
Cabling technology: 10/100/1000Base-T(X)
Feature: Dynamic DNS (DDNS)
Security
Feature: Firewall security
Feature: VLAN support
Feature: Network address translation (NAT)
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
WAN connection: Ethernet (RJ-45)
Management features
Feature: Quality of Service (QoS) support
Power
Power consumption (typical): 3 W
Power consumption (max): 6 W
Feature: Power over Ethernet (PoE)
DC input voltage: 12 – 30
Weight & dimensions
Width: 74.5 mm
Depth: 73 mm
Height: 25 mm
Weight: 145 g
Operational conditions
Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%
