DIGITAL SIGNAGE

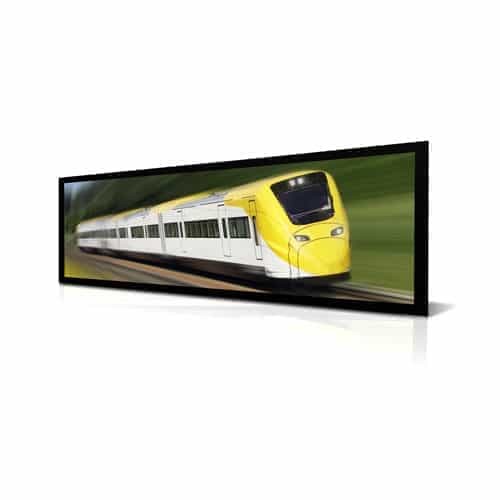

The DS371BT4 is a 37.5-inch high brightness stretched professional LCD. With a stretched 32:9 aspect ratio. the DS371BT4 is designed for special applications where height is limited. A brightness rating of 3.000 nits produces a daylight viewable image for high ambient light installations. A local dimming backlight provides incredible. high contrast picture quality and low power consumption.

LED Backlit with Local Dimming
LED backlighting is both more energy efficient and provides a much brighter image than traditional CCFL backlights. Due to the compact nature of LEDs. displays are also typically thinner. The DS371BT4 utilizes a direct LED backlighting system which is not only more energy efficient than traditional CCFL backlights. it is also considerably brighter. DynaScan has applied its LED expertise to create a collection of ultra-high brightness LCDs which can easily be viewed in direct sunlight such as storefront windows or outdoor enclosures. The display features a local dimming LED backlight technique for a remarkably high contrast picture. With direct local dimming. darker areas of an image receive less backlighting than lighter areas. as opposed to CCFL and edge-lit LED backlights which illuminate an entire screen at all times causing blacks and dark areas to appear washed out.

Color Temperature and Quality
Ensuring the color and brightness of each screen in a tiled matrix matches can be time-consuming and requires additional calibration hardware. Each screen is individually color calibrated to the D65 (6500K) CIE color standard. Not only does this produce a true. natural white. the color of all screens will be uniform.

Auto Brightness Control
Different external lighting conditions require different brightness levels. An onboard light sensor measures the ambient light in the area and automatically adjusts the image accordingly.

Intelligent Thermal Management
Heat generated by the display is radiated away from high-temperature areas while a sensor continuously monitors the internal temperature to protect the system from overheating. This is accomplished with ultra-quiet fans.

Display
Display diagonal: 95.2 cm (37.5")
Display technology: LCD
Display resolution: 1920 x 540 pixels
Display brightness: 3000 cd/m²
Response time: 16 ms
Contrast ratio (typical): 4000:1
Viewing angle. horizontal: 178°
Viewing angle. vertical: 178°
Panel life: 50000 h
Ports & interfaces
HDMI ports quantity: 1
Feature: DVI port
DVI-D ports quantity: 2
DisplayPorts quantity: 1
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Audio (L/R) in: 1
Audio (L/R) out: 1
Feature: RS-232 interface
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 200 x 100 mm
Bezel width (bottom): 5.6 mm
Bezel width (side): 1.19 cm
Bezel width (top): 5.6 mm
Performance
Purpose: Retail
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: English
Power
Power consumption (typical): 95 W
Power consumption (standby): 1 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Weight & dimensions
Width: 914.9 mm
Depth: 51.5 mm
Height: 280.8 mm
Weight: 10.5 kg
Packaging data
Package weight: 14.5 kg
Packaging content
Feature: Remote control included
Cables included: AC. LAN (RJ-45). RS-232
Operational conditions
Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 10 - 80%
Storage temperature (T-T): -20 - 60 °C
Certificates
Certification: CE. FCC
Logistics data
Harmonized System (HS) code: 85285210
Technical details
Compliance certificates: RoHS
