The TE5513A-B1AG is a cutting-edge 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection. it ensures smooth. accurate interaction. Powered by iiWare 21E with Android 14-EDLA. WiFi-6 with Bluetooth 5.0 connectivity. and iiControl (DMS). it integrates seamlessly into your ecosystem. Enjoy advanced wireless sharing with the intuitive iiShare app for streamlined collaboration and enjoy added features like a PIR motion sensor for energy efficiency. Perfect for workplaces and educational spaces. it fosters collaboration. communication. and progress.

Display
Panel type: IPS
Display diagonal: 138.7 cm (54.6")
Display resolution: 3840 x 2160 pixels
Display brightness: 450 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Touchscreen technology: PureTouch-IR
Number of simultaneous touchpoints: 40
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle. horizontal: 178°
Viewing angle. vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.315 x 0.315 mm
Active display area (W x H): 1210 x 680 mm
Display diagonal (metric): 138.8 cm
Horizontal scan range: 30 - 135 kHz
Surface hardness: 7H
Glass thickness: 3.2 mm
Ports & interfaces
HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 1
HDMI output ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
Feature: USB Type-C DisplayPort Alternate Mode
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 2
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Feature: RS-232C
Feature: OPS module slot
Feature: Audio Return Channel (ARC)
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 60 W
Design
Product design: Interactive flat panel
Placement supported: Indoor
Orientation: Horizontal
Product colour: Black

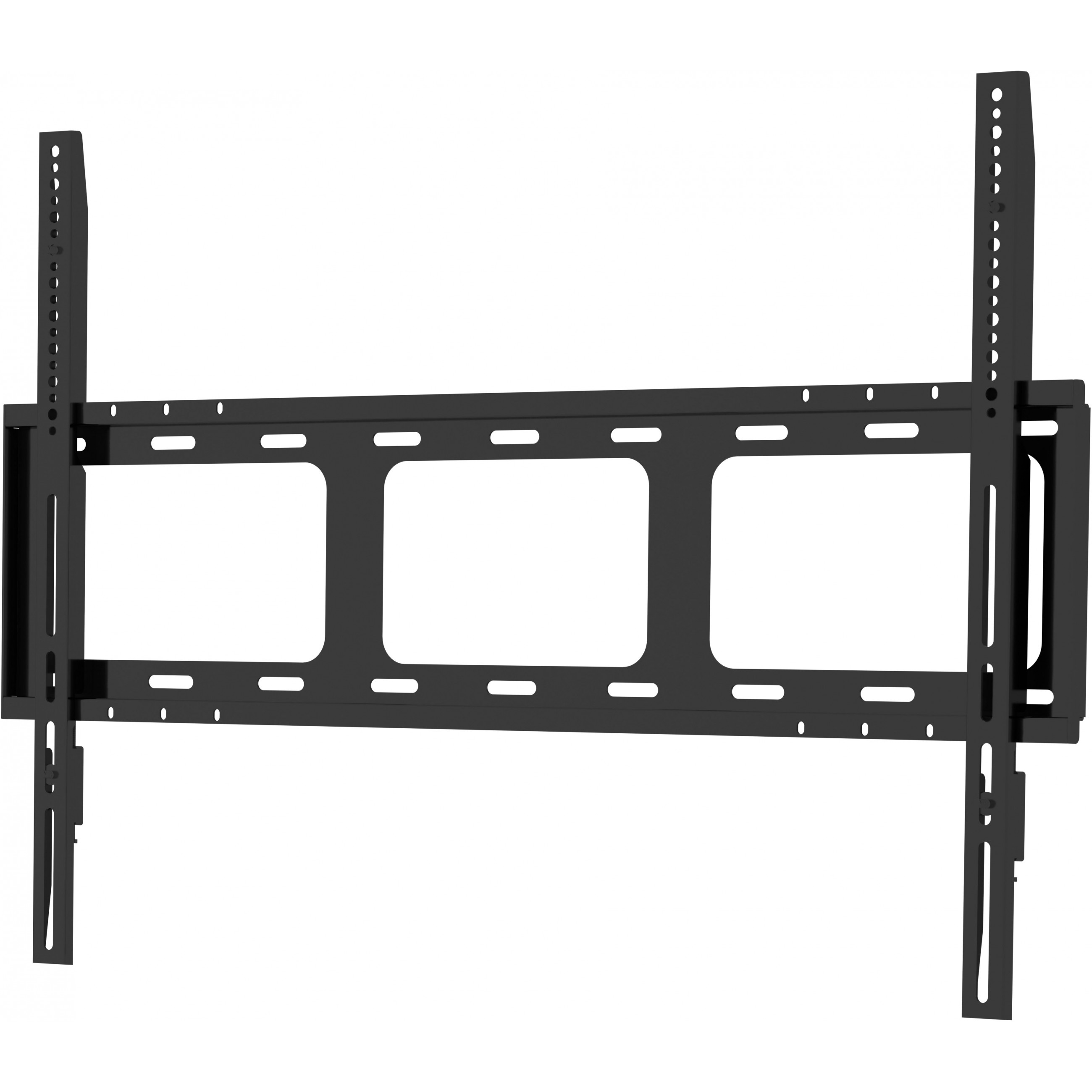

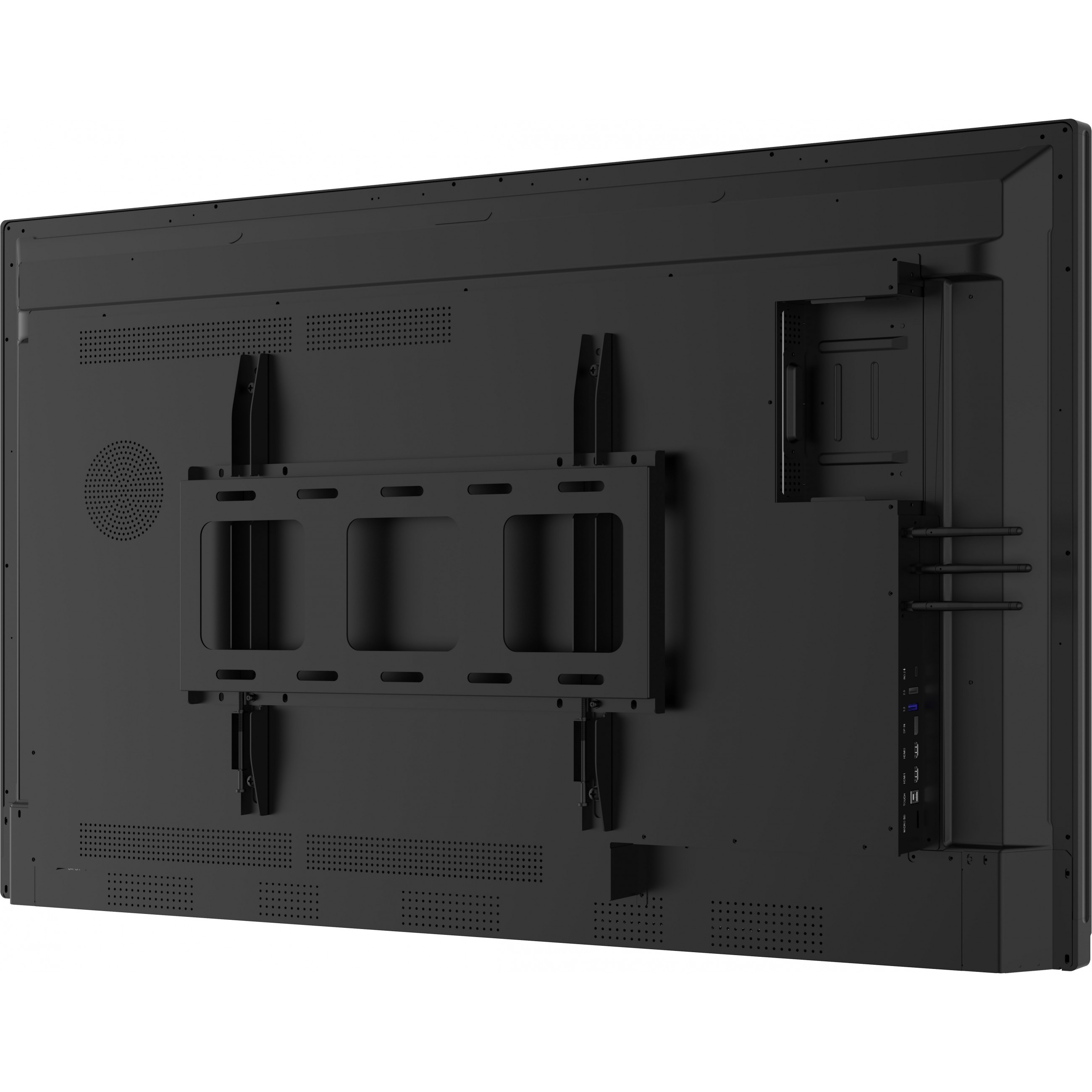

Feature: VESA mounting
Panel mounting interface: 400 x 400 mm
Bezel colour: Black
Feature: Anti-glare screen
Positioning accuracy: 1 mm
Performance
Purpose: Education
Feature: On Screen Display (OSD)
Number of OSD languages: 13
On Screen Display (OSD) languages: Czech. Danish. German. Dutch. English. Spanish. Finnish. French. Italian. Polish. Russian. Slovenian
Operating hours (hours/days): 18/7
Feature: HDCP
HDCP version: 2.3
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 125 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 125 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Computer system
Feature: Built-in processor
Processor architecture: ARM Cortex-A73
Processor frequency: 1.4 GHz
Processor cores: 4
Internal memory: 8 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 128 GB
Operating system installed: Android
Operating system version: 14
Weight & dimensions
Display width: 1267 mm
Display depth: 86 mm
Display height: 765.4 mm
Display weight: 28.7 kg
Packaging data
Package width: 1385 mm
Package depth: 1385 mm
Package height: 865 mm
Package weight: 34.8 kg
Packaging content
Feature: Remote control included

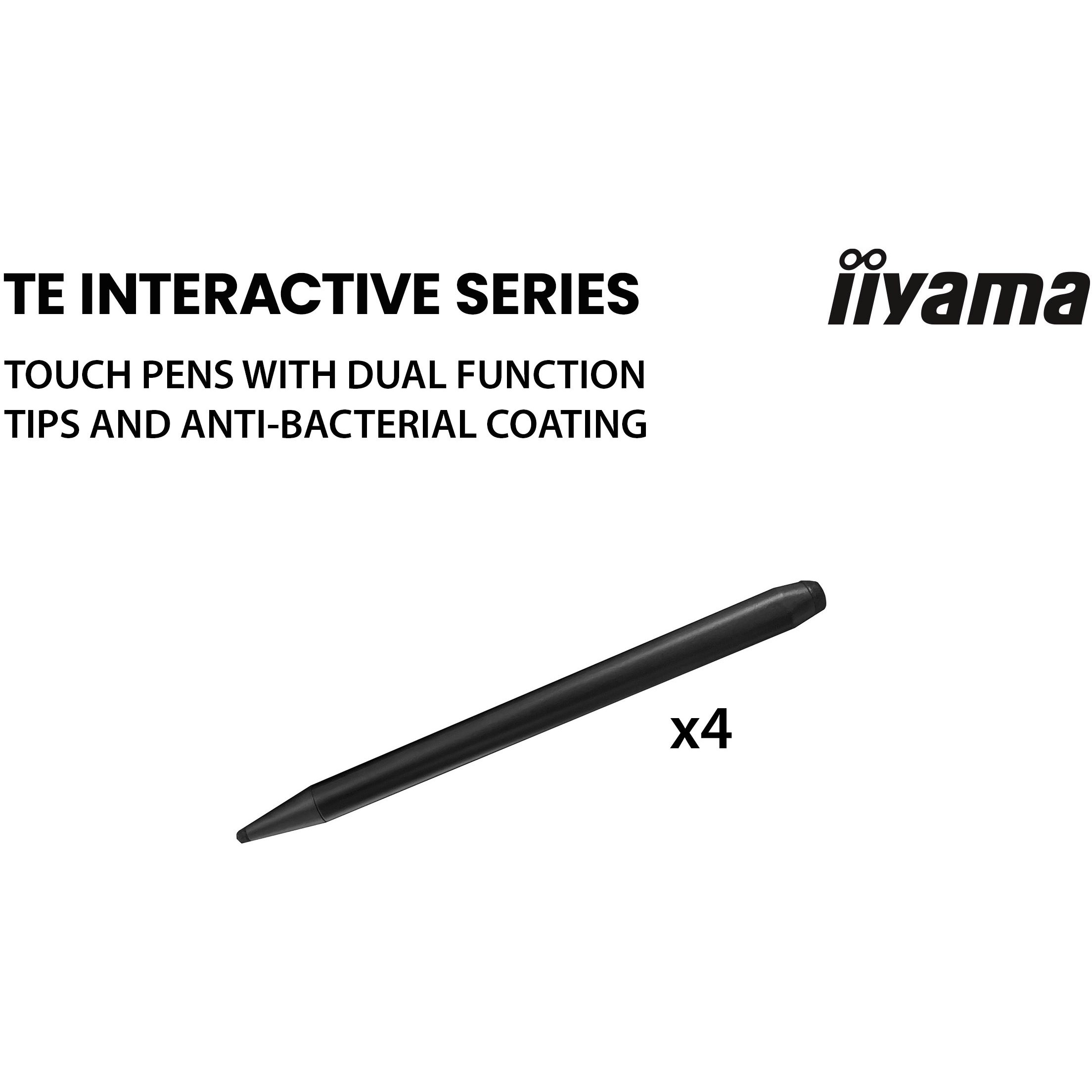

Feature: Stylus pen
Number of stylus pens: 4
Cables included: HDMI. Power. USB
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Technical details
OPS slot: 1
