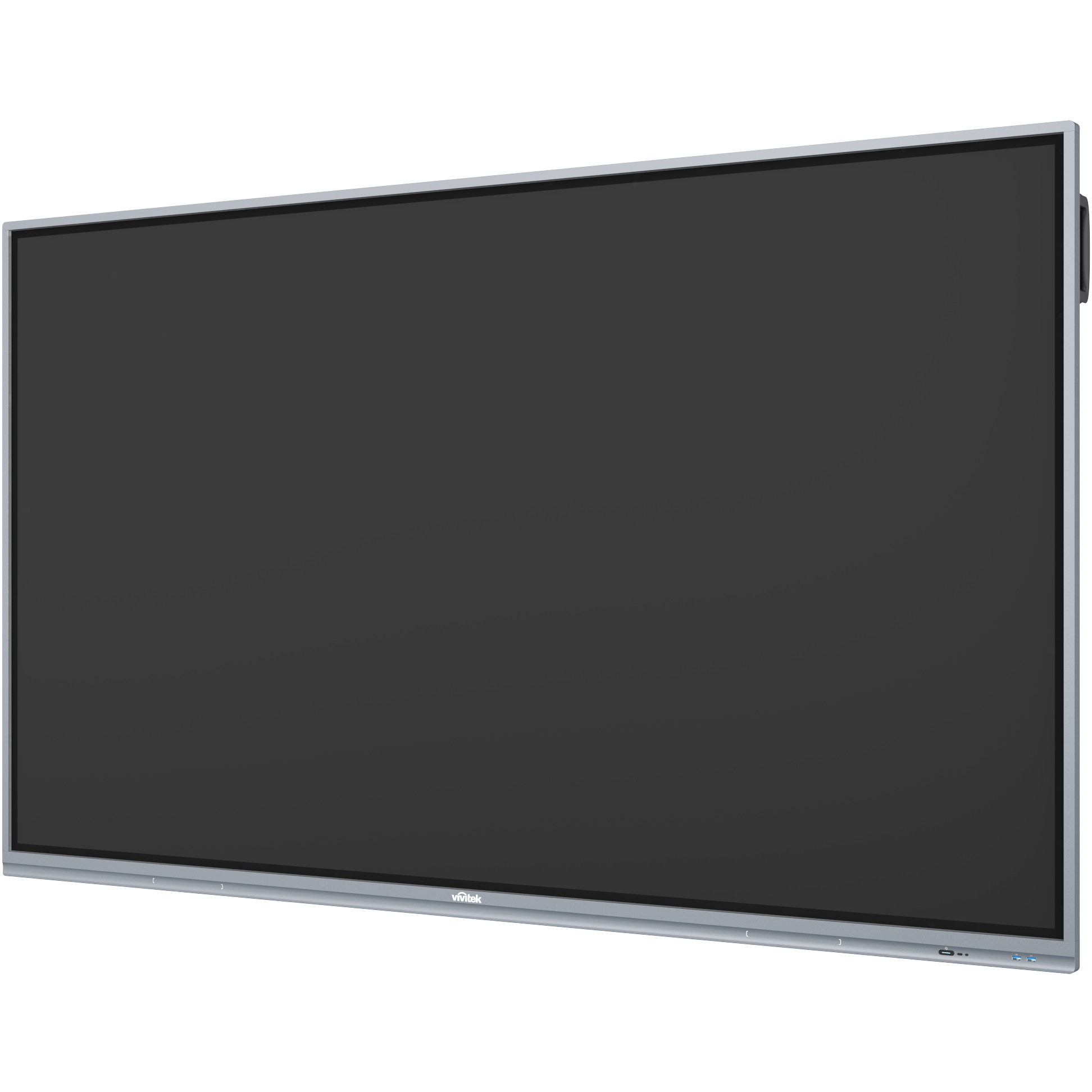

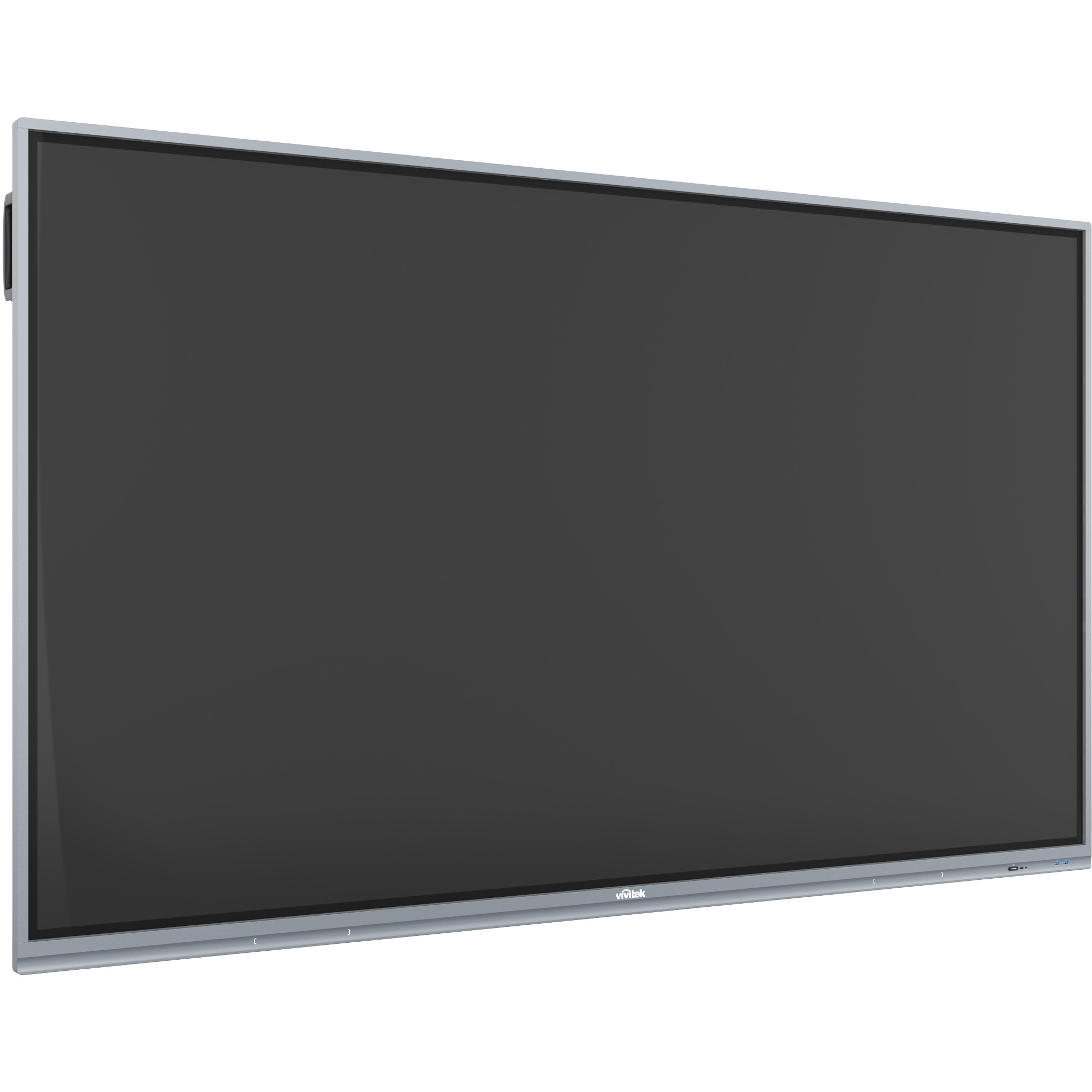

DIGITAL SIGNAGE

- 86” display with ultraHD 4K (3.840 x 2.160) resolution for outstanding details and stunning visuals
- Backlit D-LED (IPS panel) technology for brighter pictures. flawless colors. richer textures. and extra wide viewing angels (178o/178o)
- Preconfigured with NovoConnect wireless presentation and collaborative system for cable-free and hassle-free presenting in the classroom
- Connect up to 64 users simultaneously. and allow 4 people to present on one display to facilitate large group work
- Optional LauncherPlus wireless dongle connects to any visitor’s laptop for a direct plug-n-play WiFi connection without impacting an existing network
- Interactive functionality with up to a 20-point finger touch capabilities (10-point writing. 20-point touch) for on-screen annotation. drawing and common gesture controls
- Simple wireless display and true fast collaboration solution thanks to WiFi 6. 802.11AX dual-band 2.4/5GHz support
- Provide API or Remote Manager with IT management software with automatic discovery and configuration
- Full suite of connectivity ports including HDMI-In VGA-In. Audio-In/Out. LAN. RS232 and USB.
- Front bezel USB 3.0 ports for quick connection to USB memory drives and data
- 4mm thick toughened glass for added protection against scratches or screen damage
- Support HDMI-IN on presentation or digital signage mode
- Built-in NovoDS capability as an all-in-one digital signage solution. easy to set up and manage via Windows/Mac software or NovoDS.com Cloud service
- Powerful front- facing stereo audio speakers with up to 32W of total power (16Wx2) and multiple audio- in/out ports

Display
Display diagonal: 2.18 m (86")
Display brightness: 350 cd/m²
Display number of colours: 1.07 billion colours
Display resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Panel type: IPS
LED backlighting type: Direct-LED
Native aspect ratio: 16:9
Contrast ratio (typical): 1200:1
Response time: 8 ms
Maximum refresh rate: 60 Hz
Feature: Touchscreen
Touchscreen type: Infrared
Number of simultaneous touchpoints: 20
Touch resolution: 32768 x 32768 pixels
Touch system response time: 10 ms
Viewing angle. horizontal: 178°
Viewing angle. vertical: 178°
Screen glass thickness: 4 mm
Hardness: 7H
Technology: Infrared (IR)
Computer system
Operating system installed: Android
Operating system version: 9
Feature: Built-in processor
RAM capacity: 8 GB
RAM type: DDR3
Graphics card: Mali-G52
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
Speaker power: 16 W
Projector
Feature: Built-in projector
Native resolution: 3840 x 2160 pixels
Service life of lamp: 30000 h
Aspect ratio: 16:9
Network
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax)
Feature: Bluetooth
Bluetooth version: 5.0
Feature: Ethernet LAN
Ports & interfaces
Interface: USB
Feature: HDCP
HDCP version: 2.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 2.0 ports quantity: 1
USB 2.0 Type-B Touch ports quantity: 2
HDMI ports quantity: 3
USB Type-C ports quantity: 1
HDMI version: 1.4/2.0
HDMI output ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 65 W
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 1
Audio output: 1
RS-232 ports: 2
Ergonomics
Product colour: Grey
Feature: VESA mounting
Panel mounting interface: 800 x 400 mm
Power
Power consumption (typical): 500 W
Power consumption (standby): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Weight & dimensions
Width: 1957 mm
Depth: 86 mm
Height: 1160 mm
Weight: 70.8 kg
Packaging data
Quantity per pack: 1 pc(s)
Packaging content
Feature: Manual
Cables included: AC. Audio. HDMI. USB
Feature: Remote control included
Feature: Mounting kit
Feature: Stylus included
Number of stylus pens: 2
