ERGOTRON INTERACTIVE TV ARM 30-55
Product code: 15236522 // MPN: 45-296-026 // EAN: 0698833021004
Similar products

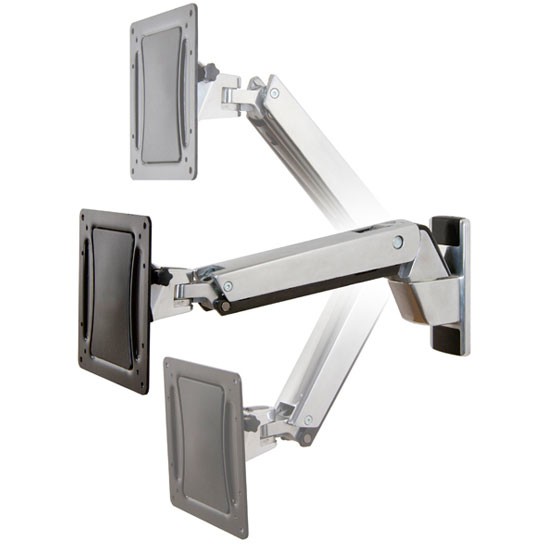

Accommodate the active TV positioning needs of today and tomorrow. Lift. swing or turn your display in any direction! Features 20 inches (51 cm) of vertical adjustment and 17.5-inch (45 cm) motion adjustment to either side.
Now anyone can effortlessly move their TV into multiple positions with only a light touch. Your screen will seemingly float on air. being easily adjusted between standing and seated heights. No more awkward viewing angles and sore necks.
Benefits
- Constant Force technology enables light-touch adjustments
- Extends 24" (61 cm) from wall when in use and can be fully retracted to 5.5" (14 cm) when not in use
- The revolutionary design allows interaction with your TV by moving the screen to where you want it when watching movies. gaming. exercising and more
- Provides smooth. continuous vertical and horizontal movement of the TV/display in all directions
- Gravity pivot enables tilting capabilities without the need of knobs or levers
- Improves ergonomic viewing for TVs/displays mounted high on the wall
- Constructed from polished aluminum and black trim for maximum strength and bold aesthetics
- Tilt and pan for maximum viewing flexibility
- Level the screen at any position with +/- 5º of post-installation rotation
- Cable management clips on the underside of the arm route and hide wires
- Easy to use: simple installation and effortless operation
- Passes Ergotron’s 7.500-cycle motion test. which ensures a minimum of five years trouble-free height adjustment
Mounting
Maximum weight capacity: 18.2 kg
Minimum screen size: 76.2 cm (30")
Maximum screen size: 139.7 cm (55")
Mounting type: Wall
Minimum VESA mount: 200 x 100 mm
Maximum VESA mount: 200 x 100 mm
Ergonomics
Height adjustment range: 0 - 510 mm
Tilt angle range: 15 - -10°
Turn angle: 10°
Pan range: 0 - 180°
Design
Product colour: Aluminium
Weight & dimensions
Weight: 8.39 kg
Packaging data
Package width: 660 mm
Package depth: 305 mm
Package height: 191 mm
Package weight: 10.5 kg
Packaging content
Feature: Manual
Logistics data
Harmonized System (HS) code: 85299097
