Cudy AX3000 Wi-Fi 6 5G Mesh Gigabit Router
Product code: 18294122 // MPN: P5 // EAN: 6971690792282
New entry
Similar products
A result of the fine-turned collaboration of Qualcomm 5G and Qualcomm Wi-Fi 6 solutions. focusing on unleashing full Wi-Fi and 5G speeds without creating interference. Equipped with upgraded 5G standard (3GPP REL. 16). P5 delivers a fiber-like low latency network for any demanding tasks.
P5 provides 5G peak speeds at 2.4 Gbps (DL/SA) and 900 Mbps (UL/SA). perfectly matching the mighty 3000 Mbps dual-band Wi-Fi 6 for 4K streaming. P5 also supports Mesh technology to reach extensive coverage. VPN and DNS over TLS enable safe connection through public networks.
Super-Fast Wi-Fi 6 Connects 4× More Devices
Full 160 Mhz channel width enables peak speed at 2402 Mbps on the 5 GHz band. best for lag-free gaming and live streaming in flawless quality. Far-reaching 2.4 GHz signal covers an expansive area. so you can enjoy the network in the backyard. OFDMA and powerful CPU enables 4× capacity for more devices.
Redundant SIM Slots
Dual SIM slots provide redundancy and Dual Nano SIM slots for redundant backup. Both SIM slots can be filled. Auto and manual mode is available for redundancy settings
WAN Internet. 4G Backup
Set WAN/LAN port as WAN to enable Cudy to use the landline internet from WAN. and 4G/5G connection works as a backup to provide a sustained and reliable internet connection for you.
Easily Optimize Signal Reception
Set WAN/LAN port as WAN to further assure staying online. Detachable cellular antennas enable reception optimization by plugging extension cables up to 12 meters* into SMA interface connectors.
4G/5G Band Lock
Band lock makes it possible to lock the 4/5G working frequency to one or several bands to keep the stability of operation.
TTL Settings
Support manual set TTL values to meet ISP's requirement(such as Verizon. Visible).
Support set IPv4 TTL and IPv6 HL Values.
Advanced DNS Security
Support DNS Encryption with trustful partners. preventing eavesdropping and manipulation of DNS data via man-in-the middle attack.
WAN connection
Feature: Ethernet WAN
Feature: SIM card slot
Feature: 3G/4G USB modem compatibility
WAN connection type: RJ-45
Wireless LAN features
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max): 2402 Mbit/s
Wi-Fi standards: 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band): 574 Mbit/s
WLAN data transfer rate (second band): 2402 Mbit/s
Network
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Feature: Port forwarding
Feature: Port triggering
Feature: Dynamic DNS (DDNS)
VPN server: PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier
VPN support: PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier
Mobile network
Mobile network generation: 5G
Feature: Dual SIM support
3G standards: WCDMA
4G standard: LTE-FDD
5G standard: Sub6 SA/NSA
5G bands supported: 6000 MHz
SIM card type: NanoSIM
Feature: Short Message Service (SMS)
Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
Feature: DC-in jack
Management features
Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: WPS push button
Feature: MIMO
Security
Security algorithms: TTLS
Feature: Firewall
Feature: Filtering
Feature: MAC address filtering
Feature: IP address filtering
Feature: DMZ support
Feature: Network address translation (NAT)
Protocols
Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)
Design
Product colour: Black
Feature: Indication light
Product type: Tabletop router

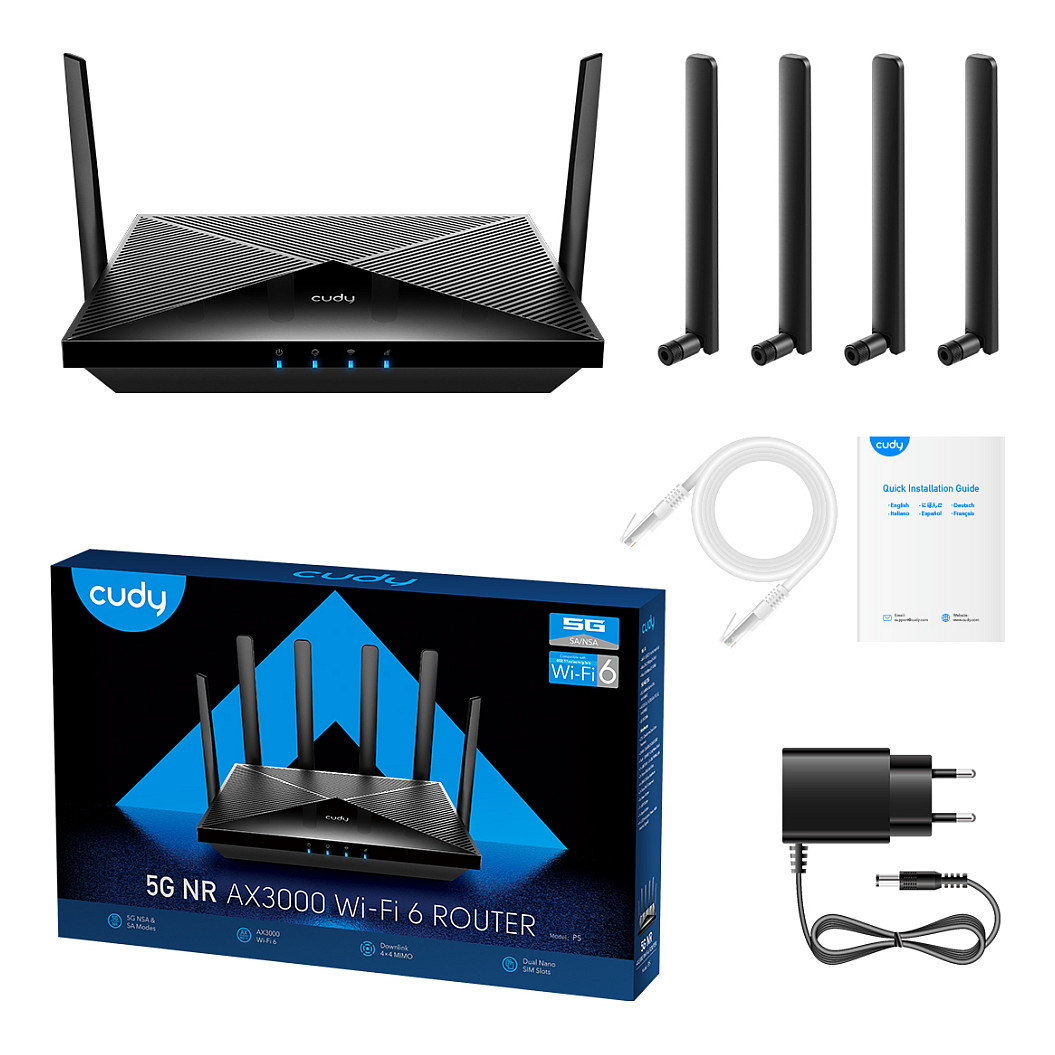

Packaging content
Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Antenna included
Feature: Quick installation guide
Antenna
Antenna design: External
Antennas quantity: 6
Feature: Detachable antenna(s)
Features
Feature: Built-in processor
Processor manufacturer: Qualcomm
Processor frequency: 1000 MHz
Processor cores: 2
Internal memory: 256 MB
Internal memory type: DDR3
Flash memory: 128 MB
Power
Power source type: AC
AC input voltage: 90 - 260 V
Output voltage: 12 V
Output current: 2.5 A
Feature: External power adapter
Operational conditions
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%
System requirements
Browser supported: Firefox 12.0. Chrome 20.0. Safari 4.0
Windows operating systems supported: Windows 10. Windows 2000. Windows 7. Windows 8. Windows 8.1. Windows 98SE. Windows NT. Windows Vista
Feature: Linux operating systems supported
Mac operating systems supported: MacOS
Feature: Mac compatibility
Weight & dimensions
Width: 152.5 mm
Depth: 253 mm
Height: 48.2 mm
Packaging data
Package width: 265 mm
Package depth: 415 mm
Package height: 90 mm
Package type: Box
