Cudy AC1200 Wi-Fi Gigabit Access Point
Product code: 13153022 // MPN: AP1300 // EAN: 6971690792022
Similar products
Connects More Devices
MU-MIMO technology allows for the simultaneous transmission of multiple data streams to multiple devices. improving efficiency and throughput under heavy use.
Boosted Coverage
Beamforming technology tracks connected devices' directions and boost signal towards them. improves coverage performance.
Mesh Ready for Seamless Coverage
Mesh support (802.11k/v) allows clients to switch between access points seamlessly.ensuring uninterrupted Wi-Fi calling or live streaming when moving around.
Flexible Wired-and-Wireless Hybrid Backhaul
Access Point
Simply create a Wi-Fi spot behind a router.
Wi-Fi Router
When PPPoE authorization or creating a separate subnet is needed. please use the Router mode.
Range Extender
Wi-Fi Extender (repeater) mode extends a existing Wi-Fi coverage to hard-to-cover area.
WISP
WISP extends Wi-Fi but creates a subnet for connected devices. so it's safer than extender mode.
Advanced Business AP Features
Captive Portal
Improve your brand awareness by displaying a customized login page for new clients.
Band Steering
Assigns devices to less congested bands.
Auto Channel Optimization
Automatically avoid signal interruptions with nearby access points.
Self-Organizing Mesh
Form mesh backhaul via less congested routes automatically.
Versatile Powering and Installation
PoE or DC Power Supply
802.3at/af PoE
24-57 V Passive PoE
DC (DC adapter is included in the box)

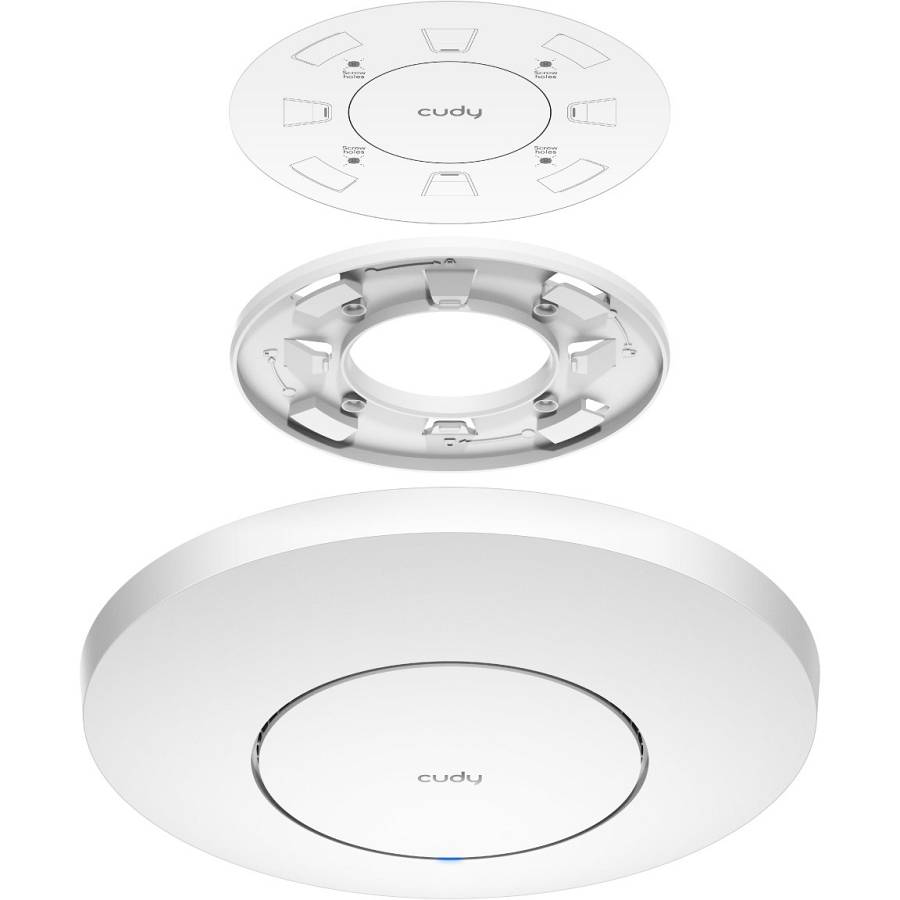

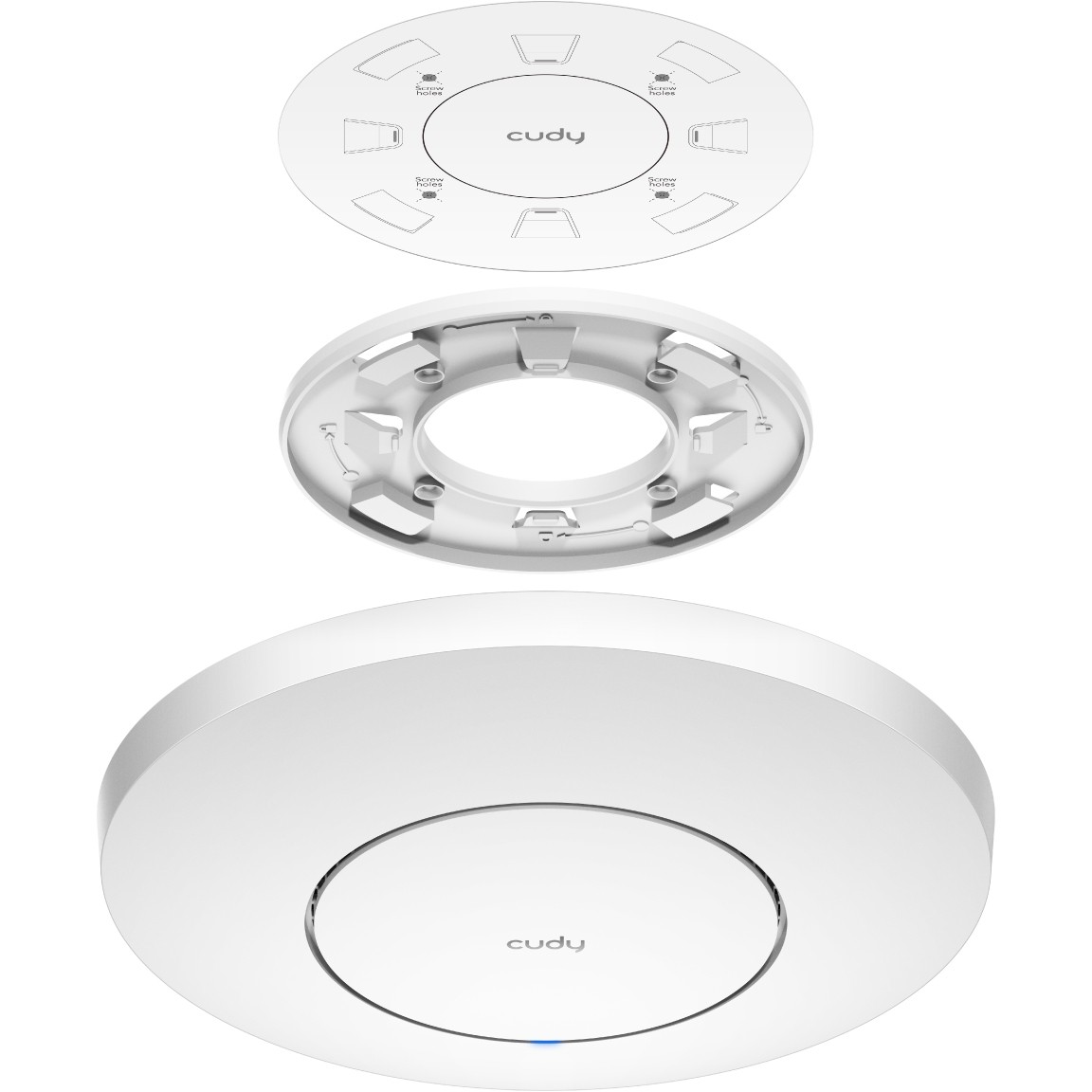

Versatile Mounting
Mounting kits are included in the box.
Features
Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate (2.4 GHz): 300 Mbit/s
Maximum data transfer rate (5 GHz): 867 Mbit/s
Ethernet LAN data rates: 10.100.1000 Mbit/s
Networking standards: IEEE 802.11a. IEEE 802.11ac. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n. IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3u
Cabling technology: 10/100/1000Base-T(X)
Feature: MIMO
MIMO type: Multi User MIMO
Fit AP mode features: Mesh networking
Feature: Rate limiting
Feature: Band steering
Feature: Quality of Service (QoS) support
Security
Security algorithms: WPA-PSK. WPA2-PSK
Feature: MAC address filtering
Feature: IP address filtering
Service Set Identifier (SSID) features: Multiple SSIDs
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack
Power
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Passive PoE
DC voltage range: 24 - 57 V
Output voltage: 12 V
Output current: 1 A
Power consumption (max): 11 W
Design
Placement: Ceiling. Wall
Product colour: White
Feature: Reset button
Feature: LED indicators
Antenna
Antenna type: Internal
Antenna direction type: Omni-directional
Antennas quantity: 4
Performance
Feature: Built-in processor
Processor frequency: 880 MHz
Flash memory: 16 MB
Internal memory: 128 MB
Compatible operating systems: Windows. MAC OS. NetWare. UNIX. Linux
Certificates
Compliance certificates: CE
Weight & dimensions
Width: 232 mm
Depth: 57.1 mm
Height: 232 mm
Packaging content
Quantity per pack: 1 pc(s)
Feature: AC adapter included
Feature: Mounting kit
Feature: Quick start guide
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
Sustainability
Feature: Sustainability compliance
MU-MIMO technology allows for the simultaneous transmission of multiple data streams to multiple devices. improving efficiency and throughput under heavy use.
Boosted Coverage
Beamforming technology tracks connected devices' directions and boost signal towards them. improves coverage performance.
Mesh Ready for Seamless Coverage
Mesh support (802.11k/v) allows clients to switch between access points seamlessly.ensuring uninterrupted Wi-Fi calling or live streaming when moving around.
Flexible Wired-and-Wireless Hybrid Backhaul
Access Point
Simply create a Wi-Fi spot behind a router.
Wi-Fi Router
When PPPoE authorization or creating a separate subnet is needed. please use the Router mode.
Range Extender
Wi-Fi Extender (repeater) mode extends a existing Wi-Fi coverage to hard-to-cover area.
WISP
WISP extends Wi-Fi but creates a subnet for connected devices. so it's safer than extender mode.
Advanced Business AP Features
Captive Portal
Improve your brand awareness by displaying a customized login page for new clients.
Band Steering
Assigns devices to less congested bands.
Auto Channel Optimization
Automatically avoid signal interruptions with nearby access points.
Self-Organizing Mesh
Form mesh backhaul via less congested routes automatically.
Versatile Powering and Installation
PoE or DC Power Supply
802.3at/af PoE
24-57 V Passive PoE
DC (DC adapter is included in the box)
Versatile Mounting
Mounting kits are included in the box.
Features
Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate (2.4 GHz): 300 Mbit/s
Maximum data transfer rate (5 GHz): 867 Mbit/s
Ethernet LAN data rates: 10.100.1000 Mbit/s
Networking standards: IEEE 802.11a. IEEE 802.11ac. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n. IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3u
Cabling technology: 10/100/1000Base-T(X)
Feature: MIMO
MIMO type: Multi User MIMO
Fit AP mode features: Mesh networking
Feature: Rate limiting
Feature: Band steering
Feature: Quality of Service (QoS) support
Security
Security algorithms: WPA-PSK. WPA2-PSK
Feature: MAC address filtering
Feature: IP address filtering
Service Set Identifier (SSID) features: Multiple SSIDs
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack
Power
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Passive PoE
DC voltage range: 24 - 57 V
Output voltage: 12 V
Output current: 1 A
Power consumption (max): 11 W
Design
Placement: Ceiling. Wall
Product colour: White
Feature: Reset button
Feature: LED indicators
Antenna
Antenna type: Internal
Antenna direction type: Omni-directional
Antennas quantity: 4
Performance
Feature: Built-in processor
Processor frequency: 880 MHz
Flash memory: 16 MB
Internal memory: 128 MB
Compatible operating systems: Windows. MAC OS. NetWare. UNIX. Linux
Certificates
Compliance certificates: CE
Weight & dimensions
Width: 232 mm
Depth: 57.1 mm
Height: 232 mm
Packaging content
Quantity per pack: 1 pc(s)
Feature: AC adapter included
Feature: Mounting kit
Feature: Quick start guide
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
Sustainability
Feature: Sustainability compliance
